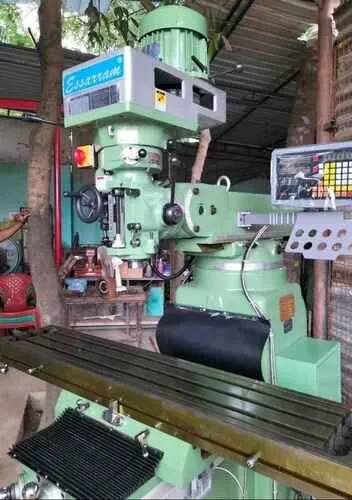

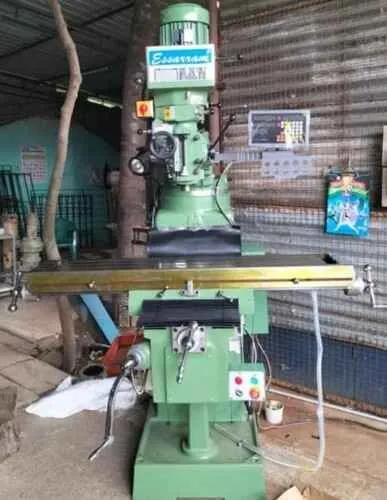

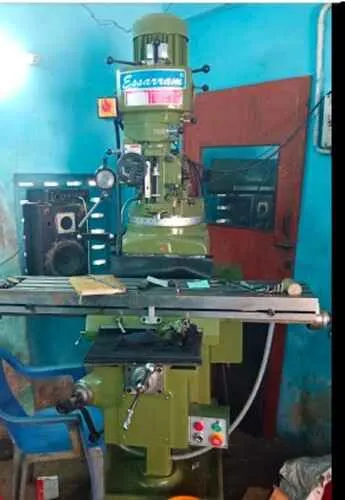

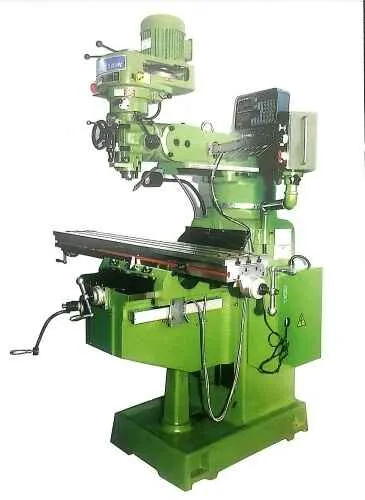

Turret Milling Machine
Rs 4.85 Lakhs / Unit
Standard Accessories:
- Oil Pump
- Tool Box
- Slideway Cover
- Working Light
Optional Accessories:
- 6" Vise
- Digital Readout
- Milling Chuck
- Mechanical Feed
- Power Feed
- Coolant Pump
- Clamp Kit
- Boring Head
Mechanical Characterstics:
- High Quality, Tenacilous clay cast
- Taiwan Precise Leading screw
- High Quality Electrical Components
- Tempered, Quenched and Hardendend slideway
- High Precise Milling Head
Standard or Economical Milling Machine Serials:
| Model | Table size min | Travel | Spindle | Max distance between spindle & Table mm | Dimension mm | Net Weight Kgs | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Longitude (x) mm | Crosward (y) mm | Vertical (z) mm | Quill mm | Rotation Speed rpm | Taper | Motor HP | |||||
| 3S/3E | 1270x254x82 | 890 | 395 | 400 | 127 | 80-5440 (16Grade)/60Hz | R8 (NT30) | 3 | 405 | 1500x1700x2100 | 1280 |
| 4S/4E | 1270x254x82 | 900 | 410 | 410 | 127 | R8 (NT30) | 3 | 470 | 1500x1700x2100 | 1450 | |
| 4SA/4EA | 1370x280x82 | 1000 | 420 | 430 | 127 | R8 (NT30) (NT40) | 3 5 |
410 | 1600x1700x2200 | 1650 | |
| 4SB/4EB/5SL | 1270x254x82 | 914 | 390 | 370 | 127 | R8 (NT30) | 4 | 425 | 1500x1700x2100 | 1500 | |
| 5S/5SA | 1370x305x85 | 910 | 420 | 420 | 127 | R8 (NT40) | 5 | 495 545 |
2000x1500x2270 | 1860 | |
| 5EA/5EB | 1370x280x85 1270x254x82 |
1000 | 390 | 406 370 |
127 | R8 (NT40) | 5 | 465 425 |
1600x1700x2200 | 1750 |
