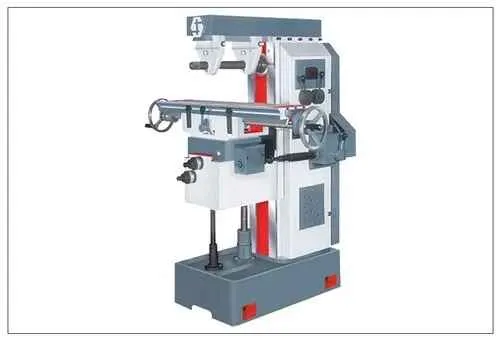

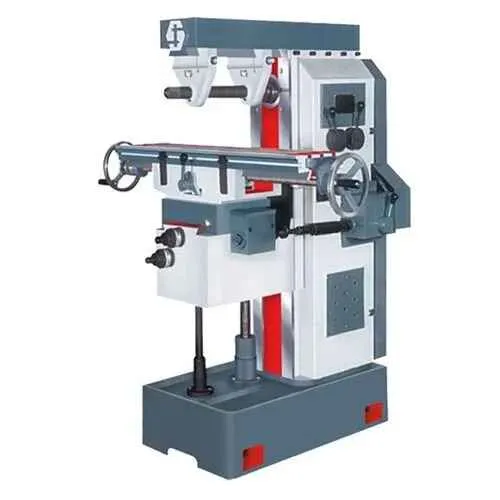

Horizontal Milling Machine

Rs 1.95 Lakhs / Unit
MaterialMild Steel
Voltage440 V
Power2 HP
Speed1440 RPM
Floor Space550 x 925 mm
Working Surface1050 x 250 mm
Number of T-Slots3
Width of T-Slots15 mm
Pitch of T-Slots62 mm
Spindle Bore17 mm
Inside TaperISO - 40
Phase3 Phase
Coolant Tank Capacity20 L

It has come out with horizontal and universal type milling machine for precise and quick production of small and large components. The machine has six spindles speeds and 3 feeds. The machine have automatic feeding arrangement in longitudinal. Table in both directions. The vertical and cross table movements are hand operated. The machine is constructed with Grade 1 Casting. Spindles, Shafts, Arbor, Screws, Gears and Spacers are made from Alloy Steel. Spindle Gear Box is oil bath lubricated
