C type power press Dealer in Chennai
The SRM Machines Center, a better-known C type power press dealer in Chennai, specializes in supplying a wide range of high-quality mechanical power presses for a wide range of industrial applications. Our C-type power press is designed to give maximum efficiency and productivity in the process of metal stamping, punching, or shaping. Being one of the leading dealers, we undertake both standard and customized solutions in meeting particularized production requirements. Equipped with state-of-the-art technology achievements, the machines are powerful and durable, working consistently under extreme circumstances.With a focus on client satisfaction, SRM Machines Center extends comprehensive after-sales services in maintenance, repair, and technical support during the lifetime of the machine. Be it for small-scale or large-scale operations, if you are looking for C-type power press machines, then you need to consider SRM Machines Center, Chennai. Trust us with high-performance machines whose servicing and expertise have no parallel anywhere.
Drilling and Tapping Machine
Milling Machine
Grinding Machine
Lathe Machine
Power Press
Others

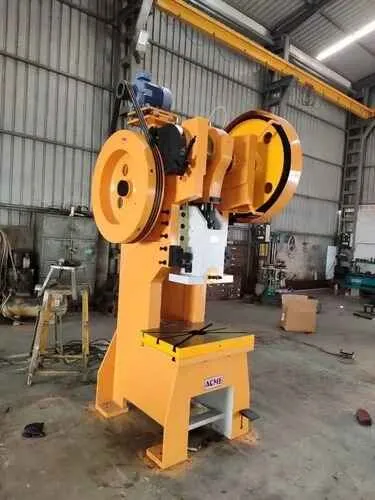

20 Ton C Type Power Press
Rs 1.75 Lakhs / Unit
| Capacity | 20 Ton |
| Material | Mild Steel |
| Motor Power | 2 HP |
| Bed Size | 305 x 508 mm (Length x Width) |
| Crankshaft Diameter | 70 mm |
| Hole in Bed | 89 mm |
| Bed Thickness | 63 mm |
| Stroke Per Minute | 50 |
| Weight | 1100 Kgs (Approx) |
Details:
- Frame : The Frame is of all Steel Construction, Fabricated from Steel Plates with Suitable Cross ribbings. Presses upto 30T will be supplied with C.I. Legs. Proper alignment of the frame is ensured by machining of the cut steel plates before welding.
- Clutch : The clutch is of pin/rolling key type. The clutch is rigid and well supported. The clutch gives continues stroke for mass production.
- Crank Shaft : Crank Shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for perfect alignment.
- Flywheel : Properly sized flywheel, is made of high grade cast iron & is balanced for storing and releasing adequate energy for the pressing operations.
- Gears : Gears are of steel cast. Gear teeth are generated by hobbing.
- Table & Ram : Table and ram are made of heavy duty cast iron & seasoned. They are perfectly aligned to each other quality pressings.
- Lubrication : An efficient shot lubrication system has been provided for lubrication the sliding surface and moving parts. The lubrication is achieved through hand pump.
Optional Accessories:
- Electric Motor
- Motor Starter
- V-Belts
- Oil Pump
- Die Clamps Etc
