Brand	Vishwakala
Material	Mild Steel
Model Name/Number	VKPR 123
Power	2 HP
Plate Width	1250 mm
Plate Thickness	3 mm
Top Roll	100 mm
Bottom Roll	90 mm
Minimum Bending Diameter	250 mm

Standard Features:

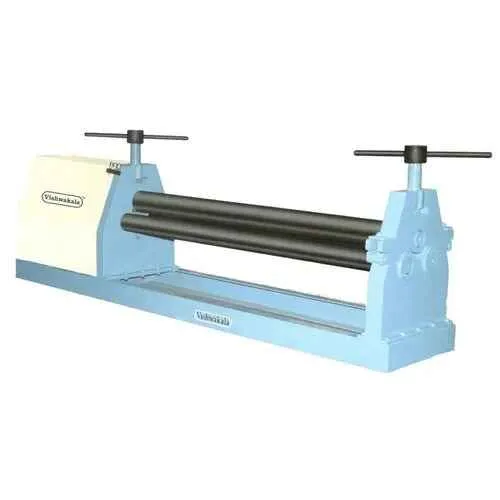

• 3 Roll Pyramid Type Design
• The Robust Welded Structure is Made of Mild Steel Plates
• Top Roll Adjustment is Manually Set by Screw Jack
• High Quality Durable Worm Gear Box
• Bending Rolls Are Made of Alloy Steel
• Bottom Rolls Are Power Driven
• Manual End Dropper Arrangement

Standard Accessories:

• Main Motor Drive
• Manual Centralized Lubrication System
• 2 Nos. Screw Drive Road
• Nut Spanner
• Ruler for Top Roll Movement & Level.
• Electric Control Panel with Movable Operation Console (Not Included in Some Basic Models)

Optional Accessories:

• Digital Readout System
• Automatic Lubrication System
• Conical Bending Arrangement
• Extended Roll Shafts for Profile Bending
• Hardened Roll
• Hydraulic Jack & Power Pack for Top Roll
