Manual surface grinding machine dealer in Chennai
SRM Machines Center is one of the well-known Manual Surface Grinding Machine Dealer in Chennai. We cater to customers with a great, high-performance machinery product for industrial applications. We offer a wide portfolio of manual surface grinders that will help towards outstanding precision and reliability in many sectors of industries like automotive, metalworking, and aerospace. Our machines can give super surface finishes and guarantee accuracy and efficiency for your grinding tasks.
As a reputed dealer, we assure you of nothing but the best quality products produced by well-known manufacturers and just perfect on all counts regarding durability and performance. Besides sales, SRM Machines Center provides installation, repair, and maintenance services to ensure that your equipment works smoothly and efficiently. Our team of experts is always there with personalized suggestions at every step to help you select the right machine according to your specific needs.
Be it a small-scale operation or a large one, SRM Machines Center would be your partner in Chennai for your requirement of manual surface grinding machines. We can help you reach out with all grinding solutions.
Drilling and Tapping Machine
Milling Machine
Grinding Machine
Lathe Machine
Power Press
Band Saw Cutting
Spares
Others

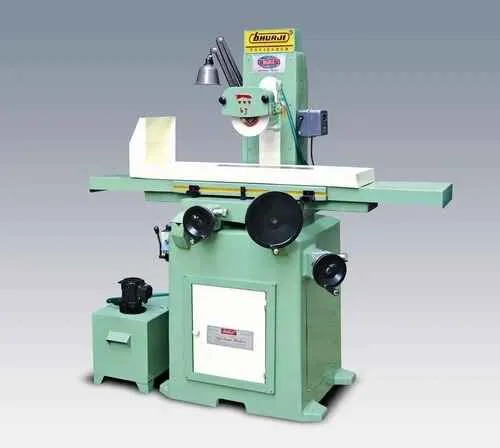

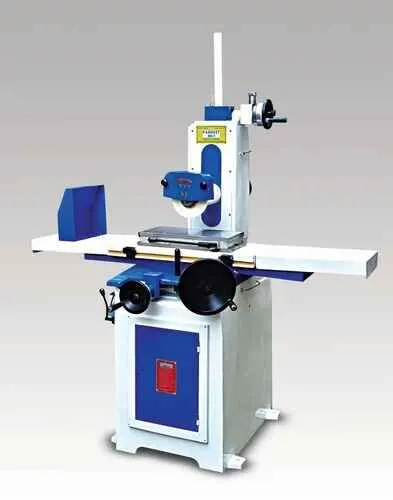

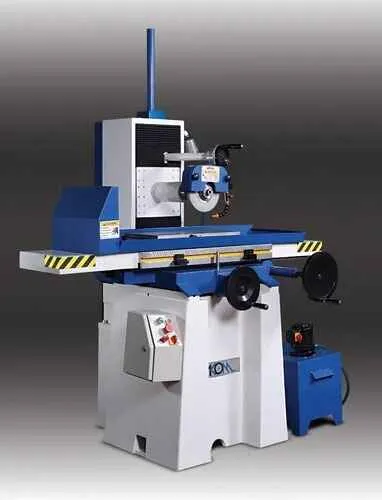

Surface Grinding Machine Manual
Rs 1.95 Lakhs / Unit
| Spindle Speed | 2800 RPM |
| Motor Power | 1 HP |
| Model Name/Number | Aarti 1 |
| Grinding Wheel Size | 200 x 13 x 31.75 mm (Diameter x Width x Bore) |
| Table Working Surface | 225 x 450 mm |
| Maximum Height From Table To Grinding Wheel | 275 mm |
| Vertical Feed Least Count | 0.01 mm |
| Microfeed Least Count | 0.002 mm |
| Crossfeed Least Count | 0.05 mm |
| Magnetic Chuck | 200 x 450 mm |
| Phase | 3 Phase |
The Structure:
The machine is built of heavy duty high grade cast iron. Base is built of hand scraped to achieve fine tolerance & accuracy. Reciprocation table provide V & Flat (guide) ways lining with TURCITE - B for easy movement.
The Wheel Head:
The Wheel head spindle hardned & ground, runs with precision angular-contact bearings with imported greece to have long trouble free service and driven by flange mounted motor through flexible couplings.
The Microfeed System :
Wheel head - slide movement right side in the base. Wheel head feed least count in 0.01 mm and microfeed least count in 0.002 mm.
Standard Accessories:
- 2 Balancing stand & mandrel
- Diamond dressor with holder
- Lubrication pump
- Toolkit
- One - grinding wheel with flange
- Motor stater
Optional Accessories:
- Parmanet magnetic chuck
- Coolant equipment
- Machine lamp (230 V AC)
- Wheel flange unit
Features:
- Durable
- Reliability
- High efficiency
Specifications :
| Model | Aarti 1 | Aarti 2 |
|---|---|---|
| Working Surface of the Table | 225 x 450 mm | 300 x 600 mm |
| Maximum Height from Table to Grinding Wheel | 275 mm | 275 mm |
| Verticle Feed Least Count | 0.01 mm | 0.01 mm |
| Microfeed Least Count | 0.002 mm | 0.002 mm |
| Crossfeed Least Count | 0.05 mm | 0.05 mm |
| Spindle Speed | 2800 rpm | 2800 rpm |
| Size of Grinding Wheel (Dia x Width x Bore ) | 200 x 13 x 31.75 mm | 200 x 13 x 31.75 mm |
| Magnetic Chuck (recommended) | 200 x 450 mm | 250 x 600 mm |
| Electric Motor | 0.75kw / 1hp, 3ph | 1.5kw / 2hp, 3ph |
