All Geared Lathe Machines Manufacturer in Chennai | SRM Machines Center
SRM Machines Center is one of the leading All Gear lathe Machine Manufacture in Chennai. We manufacture top-quality, reliable, and precision-engineered machines. All our gear lathe machines are fabricated in such a way that they cater to the various machining requirements. We also ensure superior performance for turning, facing, and threading in all general industries.
Being among the main All gear lathe machine manufacture in Chennai, we employ innovative technology and high-quality materials in the manufacturing method that ensures durability, accuracy, and efficiency. We develop these machines to resist huge workloads without losing any precision, which makes them ideal for tasks ranging from small-scale to large-scale milling. We offer personalized consulting to assist you in the choosing of the best machine for your needs and also installation, training, and comprehensive after-sales support for seamless and plentiful operations.
Make sure to select SRM Machines Center for any gear-related lathe machine in Chennai. Contact us now to experience our portfolio of high-performance lathe machines for improved machining capabilities.
Drilling and Tapping Machine
Milling Machine
Grinding Machine
Lathe Machine
Power Press
Band Saw Cutting
Spares
Others

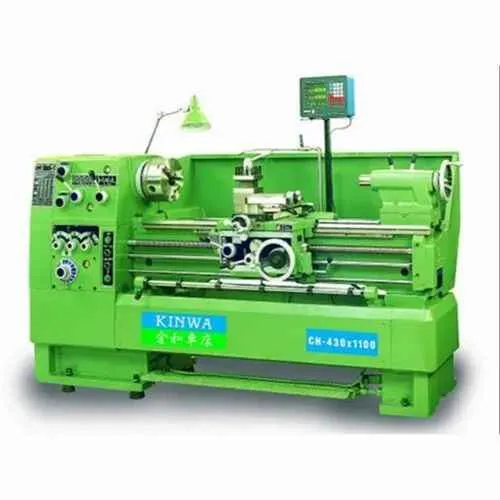

All Gear Lathe Machine
Rs 4.50 Lakhs / Unit
| Lead Screw Diameter | 35 mm |
| Number of Feeds | 36 |
| Quill Diameter | 60 mm |
| Quill Stroke | 170 mm |
| Quill Taper | MT 4 |
| Stroke of Cross Slide | 265 mm |
| Stroke of Tool Post | 145 mm |
| Swing Over Carriage | 268 mm |
| Swing Over Gap | 610 mm |
| Width of Bed | 300 mm |
| Material | Mild Steel |
| Brand | Kinwa |
| Warranty | 1 Year |
| Swing Over Bed | 432 mm |
| Layout | Horizontal |
| Model Name/Number | CH-430 x 1100 |
Known as a renowned organization, we are involved in offering a wide range of Horizontal Lathe Machine to fulfill the needs of our customers. Horizontal Lathe Machine light in weight and are easy to operate. These products are precision engineered and ensure longer functional life. A team of skilled professionals and efficient workers of the industry construct these products with set industrial norms.
Features:
- High performance
- Ruggedness
- Durability
- Bed is made of meehanite and is hardened and precisely ground, Hardness is HS 70 degree.
- Automatic and manual forced Lubrication pump supplies oil to cross slide and bedways.
- Oil distributor may be adjusted to lubricate bedway, cross slide, or both.
- Starting lever with safety device.
- Emergency foot-operated braking system.
- Headstock-Gear in the headsotck are treated by cementation and precisely ground. Forced lubrication system is employed. HP Model with P5 grade spindle bearing is optional.
- Gear Box-It offers a comprehensive range of inch and metric threads without the use of change gears. All gears in the gear box are hardened.
- Apron-Apron is equipped with a manual and automatic lubrication system. It will keep cross slide ways and bedways clean and lubricated. The apron is equipped with an overload protection device to avoid machine damage.
Standard Equipment & Accessories
- Leveling screws
- Service kits & Tool box
- 9" backplate
- Main motor 5HP / 4P
- Coolant system
- Multi - position length stop
Optional Equipment & Accessories
- Center sleeve MT6 x MT4
- Dead center ( MT4 ) 2 PC
- 7" backplate
- Steady rest
- Follow rest
- Face plate ( 350 mm )
- Turret micro carriage stop
- Taper turning attachment
- 3 - jaw chuck
- 4 - jaw chuck
- Work light
- Rear toolpost
- Main motor 7.5HP / 4P
- Full length splash guard
- Drill attachment
- Spindle bore 78mm ( for CH430 / 530 )
