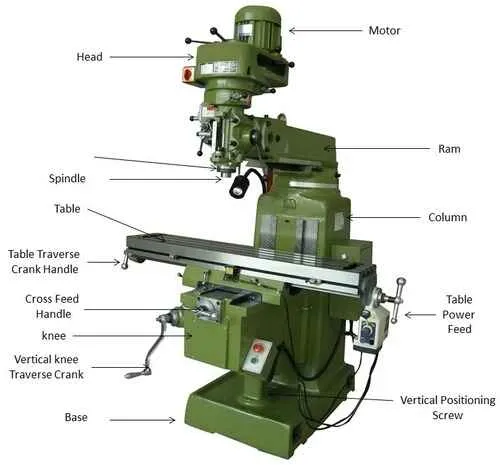

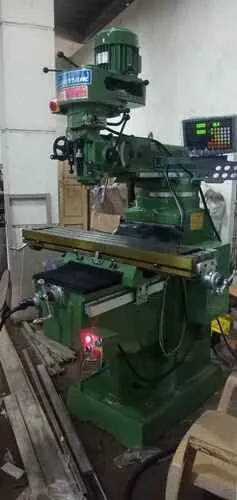

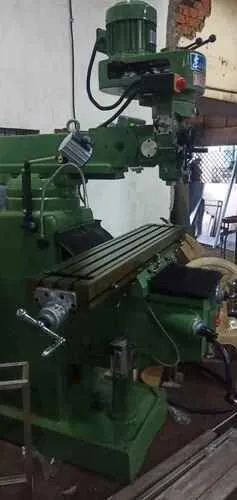

Vertical Turret Milling Machine
Rs 3.84 Lakhs / Unit
| Table Size | 1270 x 254 x 82 mm |
| Motor Power | 3 HP |
| Weight | 1280 Kgs |
| Model Name/Number | 3S/3E |
| Longitude X Travel | 890 mm |
| Crossword Y Travel | 395 mm |
| Vertical Z Travel | 400 mm |
| Spindle Quill | 127 mm |
| Spindle Taper | R8 (NT30) |
| Max Distance Between Spindle & Table | 405 mm |
| Dimension | 1500 x 1700 x 2100 mm |
| Spindle Rotation Speed | 80-5440 RPM |
| Spindle Tolerance | 0.005 mm |
Our company is one of the well known companies that offer a wide range of Vertical Turrent Milling Machine to fulfill the demands of our clients. For the benefits of our clients, these machines are easily operated with less input and great output. Milling Machine is rigid in state and is offer hurdle free performance.
Features:
- Easy installation
- Smooth functionality
- Optimum milling speed
Standard Accessories:
- Oil Pump
- Tool Box
- Slideway Cover
- Working Light
Optional Accessories:
- 6" Vise
- Digital Readout
- Milling Chuck
- Mechanical Feed
- Power Feed
- Coolant Pump
- Clamp Kit
- Boring Head
Mechanical Characterstics:
- High Quality, Tenacilous clay cast
- Taiwan Precise Leading screw
- High Quality Electrical Components
- Tempered, Quenched and Hardendend slideway
- High Precise Milling Head
Standard or Economical Milling Machine Serials:
| Model | Table size min | Travel | Spindle | Max distance between spindle & Table mm | Dimension mm | Net Weight Kgs | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Longitude (x) mm | Crosward (y) mm | Vertical (z) mm | Quill mm | Rotation Speed rpm | Taper | Motor HP | |||||
| 3S/3E | 1270x254x82 | 890 | 395 | 400 | 127 | 80-5440 (16Grade)/60Hz | R8 (NT30) | 3 | 405 | 1500x1700x2100 | 1280 |
| 4S/4E | 1270x254x82 | 900 | 410 | 410 | 127 | R8 (NT30) | 3 | 470 | 1500x1700x2100 | 1450 | |
| 4SA/4EA | 1370x280x82 | 1000 | 420 | 430 | 127 | R8 (NT30) (NT40) | 3 5 |
410 | 1600x1700x2200 | 1650 | |
| 4SB/4EB/5SL | 1270x254x82 | 914 | 390 | 370 | 127 | R8 (NT30) | 4 | 425 | 1500x1700x2100 | 1500 | |
| 5S/5SA | 1370x305x85 | 910 | 420 | 420 | 127 | R8 (NT40) | 5 | 495 545 |
2000x1500x2270 | 1860 | |
| 5EA/5EB | 1370x280x85 1270x254x82 |
1000 | 390 | 406 370 |
127 | R8 (NT40) | 5 | 465 425 |
1600x1700x2200 | 1750 |
