Pillar Type Drilling Machine Manufacturer in Chennai
SRM Machines Center is among the finest Pillar type drilling machine manufacturer in Chennai. Our machines are well recognized for their superior finishing and excellent performance with great precision. The pillar type drilling machines manufactured by us are specially designed for heavy loads, providing tremendous stability, strength, and accuracy required by fabrication, construction, and engineering industries.
As one of the most trusted Pillar type drilling machine manufacturer in Chennai, we employ only the best parts in conjunction with the latest technology to achieve the greatest levels of efficiency and dependability. Our range can be tailored as per your industrial specifications and react to a variety of drilling needs.
We promise client delight with smooth services, from machine selection to installation and after-sales support. For effective and lasting pillar type drilling machines in Chennai, look no further than SRM Machines Center. To understand all about our products and how they could increase your drilling efficiency, contact us today.
Drilling and Tapping Machine
Milling Machine
Grinding Machine
Lathe Machine
Power Press
Band Saw Cutting
Spares
Others

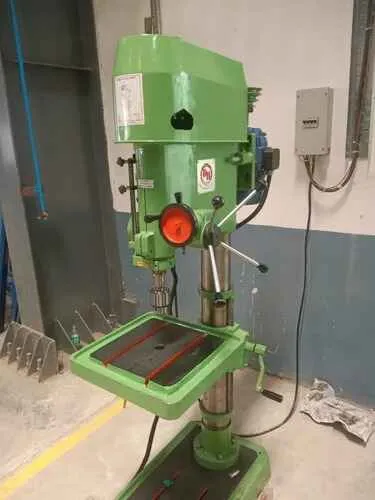

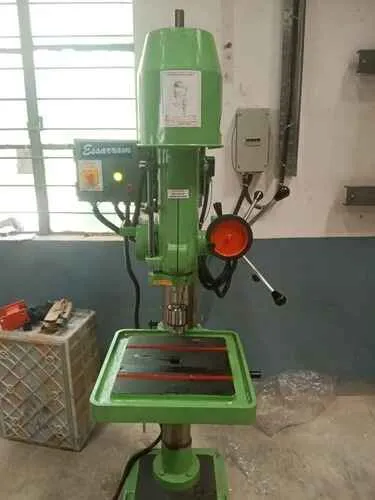

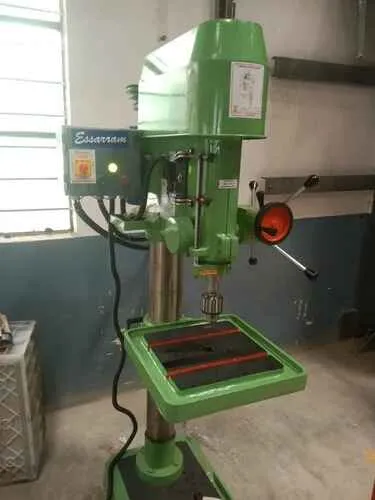

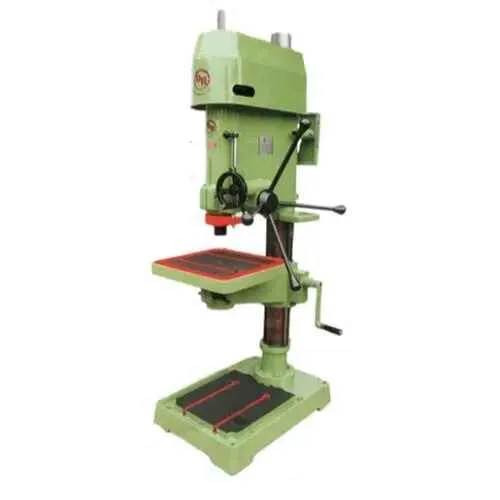

38 Mm Pillar Drilling Machine
Rs 70,000 / Unit
| Material | Mild Steel |
| Voltage | 440 V |
| Phase | Three Phase |
| Weight | 300 Kg |
| Drilling Capacity | 38 mm (In Steel) |
| Tapping Capacity | 30 mm (In Cast Iron) |
| Column Diameter | 106 mm |
| Max Spindle Nose to Table | 570 mm |
| Max Spindle Nose to Base | 1000 mm |
| Taper in Spindle | M.T.-4 |
| Range of Speed | 100 to 2435 RPM |
| Table Size | 390 x 390 mm |
| Over All Height With Guard | 1790 mm |
| V-Belt Section | B-60 |
| Power | 1.5 HP |
| Over All Base Size | 670 x 430 mm |
| Drilling Capacity in Steel | 38 mm. |
| Tapping Capacity in C.I. | 30 mm. |
| Column Dia | 106 mm. |
| Max Spindle Nose to Table | 570 mm. |
| Max Spindle Nose to Base | 1000 mm. |
| Taper in Spindle | M.T.-4 |
| Spindle Travels | 275 mm. |
| No. of Speed | 8 |
| Range of Speed | 100 to 2435 |
| Table Size | 390x390 mm. |
| Base Size (Machined Area) | 410x350 mm |
| Over All Base Size | 670x430 mm |
| OVer All Height With Guard | 1790 |
| V-Belt Section | B-60 |
| Motor 1440 RPM 3ph. 440 v. | 1.5 HP |
| Approx Machine Weight | 300 kg. |
