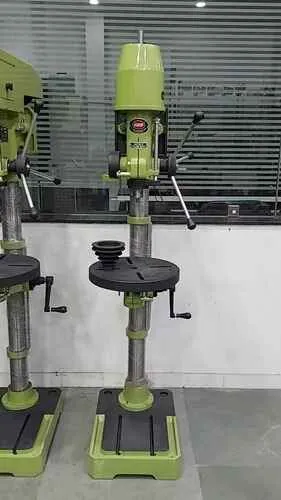

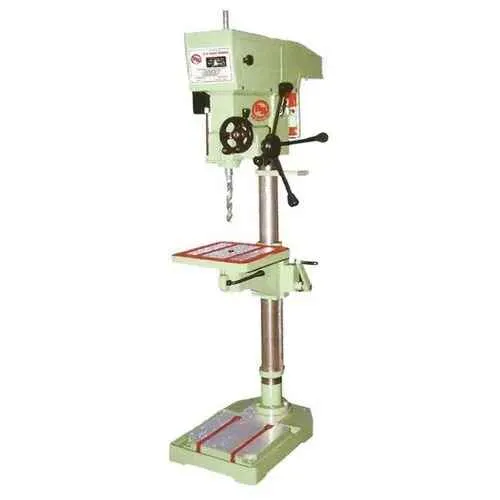

25 mm Pillar Drilling Machine
Rs 45,000 / Unit
| Range of Spindle Speed | 1440 RPM |
| Drilling Capacity | 25 mm (In Steel) |
| Power | 1 HP |
| Spindle Travel | 185 mm |
| Table Size | 345 x 345 mm (OD) |
| Tapping Capacity | 19 mm (In Steel) |
| Taper in Spindle | M.T.-3 |
| Net Weight | 200 Kgs |
| Column Diameter | 90 mm |
| Centre of Spindle to Column | 255 mm |
| Min Spindle to Table | 650 mm |
| Max Spindle to Table | 1050 mm |
| Overall Base Size | 625 x 420 mm |
| V-Belt Size | B-52 |
