DRO Scale Dealer in Chennai | SRM Machines Center
SRM Machines Center is one of the trusted DRO Scale Dealer in Chennai for serving a wide variety of high-quality digital readout systems for industrial machinery. All types of DRO scales within our firm are manufactured in a manner to provide accurate measurement and enhance the accuracy of your machine operation. Whether it is for milling machines, lathes, or grinders, we offer quality solutions by availing a gamut of DRO systems that precisely meet your requirements.
As one of the leading DRO scale sellers in Chennai, we at SRM Machines Center ensure that all our supplies are acquired from leading manufacturers so that issues of durability and performance can be taken into consideration. Our expert team will help you select the right DRO scale for each piece of machinery, and installation and servicing are also provided to make sure it works.
At SRM Machines Center, trust the professional choice of top-class DRO scales and prompt customer service. Feel free to contact us, and we will take you through our different personal choice DRO systems to upgrade your precision in operations.
Drilling and Tapping Machine
Milling Machine
Grinding Machine
Lathe Machine
Power Press
Band Saw Cutting
Spares
Others

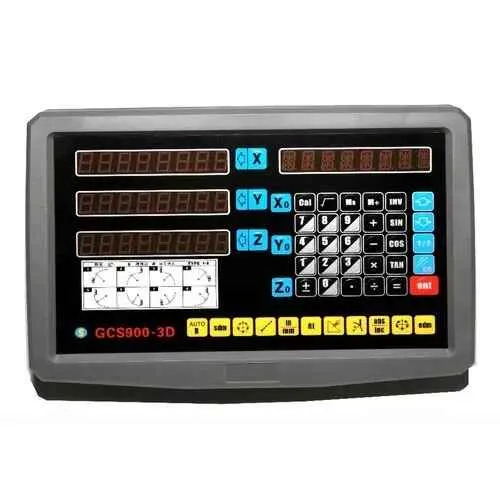

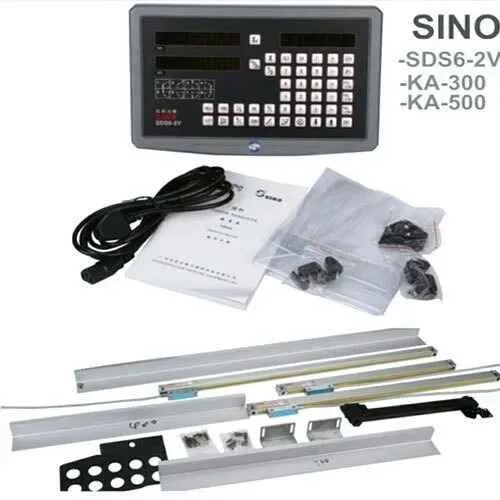

Digital Readout System
Rs 28,000 / Unit
| Frequency | 50 Hz-60 Hz |
| Relative Humidity | < 90%(20 +/- 5 Degree C) |
| Weight | 3.2 Kgs |
| Voltage | AC 85 V-260 V |
| Power Loss | 25 VA |
| Working Temperature | 0-45 Degree C |
| Storage Temperature | -30 to 70 Degree C |
| Output Signal of Display Counter | TTL Square Wave |
| Length Resolution | 5 Micrometer, 1 Micrometer |
Features :
- DROII-2M--> For 2 axis milling machine, metal case
- DROII-2L--> For 2 axis lathe machine, metal case
- DROII-2L2--> For 3 axis lathe machine, metal case
- DROII-2G--> For 2 axis grinding machine, metal case
- DROII-3M--> For 3 axis milling machine, metal case
- DROII-3E--> For 3 axis EDM machine, metal case
Characteristics :
- Advanced electronic technology and personality design
- Rapid response speed and powerful functions
- Can directly calculate the sine, cosine and trigonometric functions in the meter
- Solid and durable cover in power and signal is very strong
- High quality and suitable panel, which simple and convenient for exchange
Functions :
- Zero reset
- Preset
- Inc /mm conversation
- ABS/INC coordinate conversation /200 groups coordinates display memory of Dower-cut
- 1/2" Function key display
- Linear error rectify
- Sleep switch
- 200 point auxiliary zero
- Absolute Reference point of scale
DRO Functions :
- Calculating smoothed are "R"(DRO-2M&DRO-3M are available)
- Calculating simple&easy are "R"(DRO-2M is available)
- Boring hole in oblique line(DRO-2M&DRO-3M are available)
- 200 points auxiliary zero position function(DRO-2M, DRO-3M, DRO-3E AND DRO-2G are available)
- Disparting hole for PED circle (DRO-2M, DRO-3M, DRO-3E are available)
- Processing oblique surface(DRO-2M&DRO-3M are available)
- Asymptotic processing for the inner of rectangle (DRO-2M&DRO-3M are available)
- Finding automatically Zero position function (DRO-2M, DRO-3M, DRO-3E are available)
- Simply calculating function (DRO-2M&DRO-3M are available)
- Cutting-tool compensation function (DRO-3M are available)
- Digital fill tracing function (DRO-2G are available)
- EDM output function(DRO-3E are available)
- 3M function(DRO-2M are available): This is used to process the erect oblique surface of Z-axis.

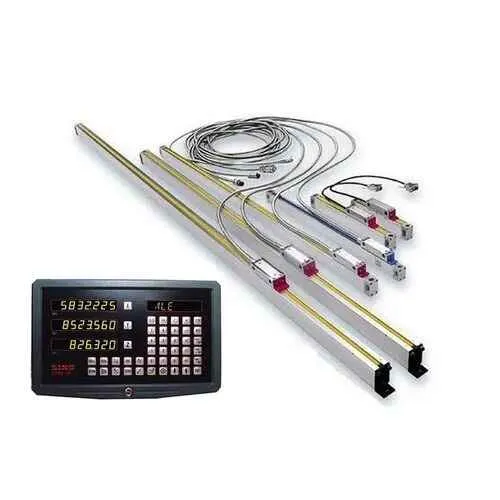

Linear Scale Series :
- Optical grating distance: 0.02mm
- Power supply: 5V
- Output Signal: TTL, RS422, ~1Vpp
- Current: 50mA (accuracy: ± 3μ M, ± 5μ M, ± 10μ M)
- Scale type: JCXFS, JCXF, JCXE, JCXK, JCXG, JCXGL
- Resolution: 0.1um, 0.2um, 0.5um, 5um, 10um
- Plug connector: DIN7, DIN9, D-SUB9, other non-standard plug connectors
- Travel: 25mm~6000mm
- Accuracy: Normal accuracy, high accuracy
- Used on various machine tools and high precision measuring machines including profile projector, Vision measuring machine, tool maker's microscope etc. Also can be used to upgrade old machine tools.
Other Details:
- Coordinate: Two-coordinates & Three-coordinates
- Display: 7 bit display data with sign, information window adopts 8 bit symbol output model
- Frequency: Multiplication: 4*
- Multiplying power of input signal: >100kHz
- Operating keyboard: Enclosed & film, slight-touch keyboard
