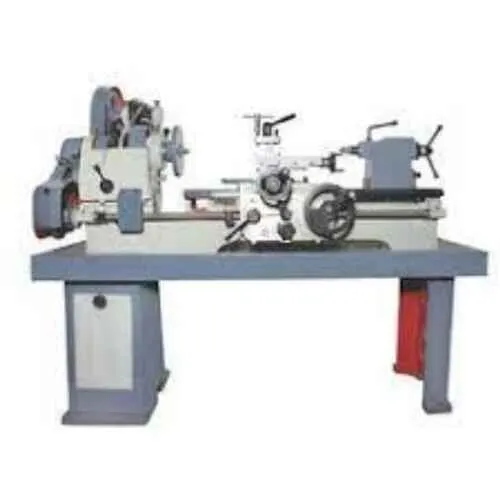

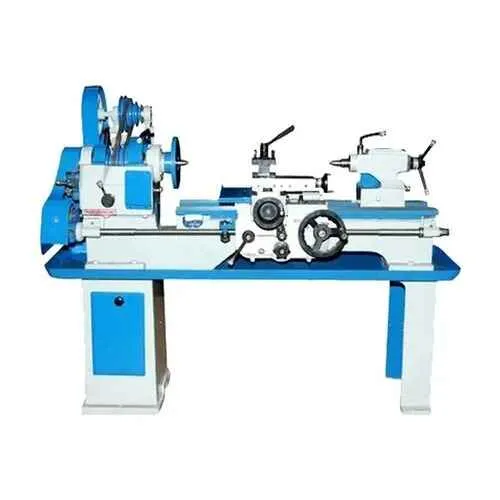

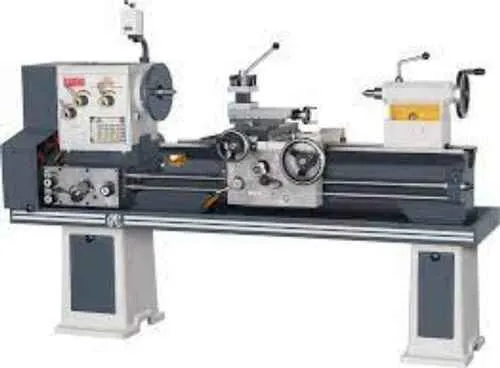

SRM Machines Center is one of the reputed Light Duty Lathe Machine Dealer in Chennai, offering a gamut of superior-quality light-duty lathe machines suitable for performing small to medium-scale machining jobs. Our gamut of machines is designed to offer a perfect mix of precision, reliability, and convenience for excellent performance pertaining to a variety of applications like metalworking, woodturning, and general machining.
Being among the most trusted light duty lathe machine dealers in Chennai, we provide machines at an economical cost with long-lasting technology. We have a team of experts for consultation to assist our customers in choosing the perfect machine since too many options are available to meet their needs. Professional handling of the machine provides smooth installation and after-sales services for all our clients to ensure flawless operation and effectiveness.
Experience the high-quality light duty lathe machines in Chennai with SRM Machines Center. We can be contacted for any of our products. Take your machining capability to the next level with our premium-class machine.
Power | 1 HP |
Model Name/Number | LD-A |
Range of Spindle Speeds | 40-800 RPM |
Swing Over Bed | 320 mm |
Bed Width | 238 mm |
Spindle Bore | 38.1 mm |
Bed Length | 1065 mm |
Admit Between Center | 375 mm |
Height of Center | 165 mm |
Swing Over Cross Slide | 180 mm |
Compound Slide Travel | 110 mm |
Swing Over Gap | 580 mm |
Quill Stroke | 120 mm |
Model | Bed Length (mm/Feet) | Admit Between Centre (mm) |
---|---|---|
LD-A | 1065/3.5 | 375 |
LD-B | 1375/4.5 | 685 |
LD-C | 1825/6.00 | 1135 |
Detail Technical Specification for all Model are as under
Bed | ||
---|---|---|
Bed Width | mm/inch | 238/9.5 |
Bed Type | V/ Flate | 2/2 |
Gap Length | mm | 120 |
Capacity | ||
Height of Centre | mm/inch | 165/6.5 |
Swing Over Bed | mm | 320 |
Swing Over cross slide | mm | 180 |
Swing Over gap | mm | 580 |
Slide | ||
Cross Slides Travel | mm | 220 |
Compound Slide Travel | mm | 110 |
Main Spindle | ||
Spindle Sleeve nose | MT | 3 |
Spindle Bore | mm/inch | 38.1/1.5 |
Spindle Speed | No. | 8 |
Spindle Range | RPM | 40-800 |
Spindle Motor Power | HP | 1 |
Tail Stock | ||
Quill dia | mm | 38.1 |
Quill stroke | mm | 120 |
Taper in Quill | MT | 3 |
